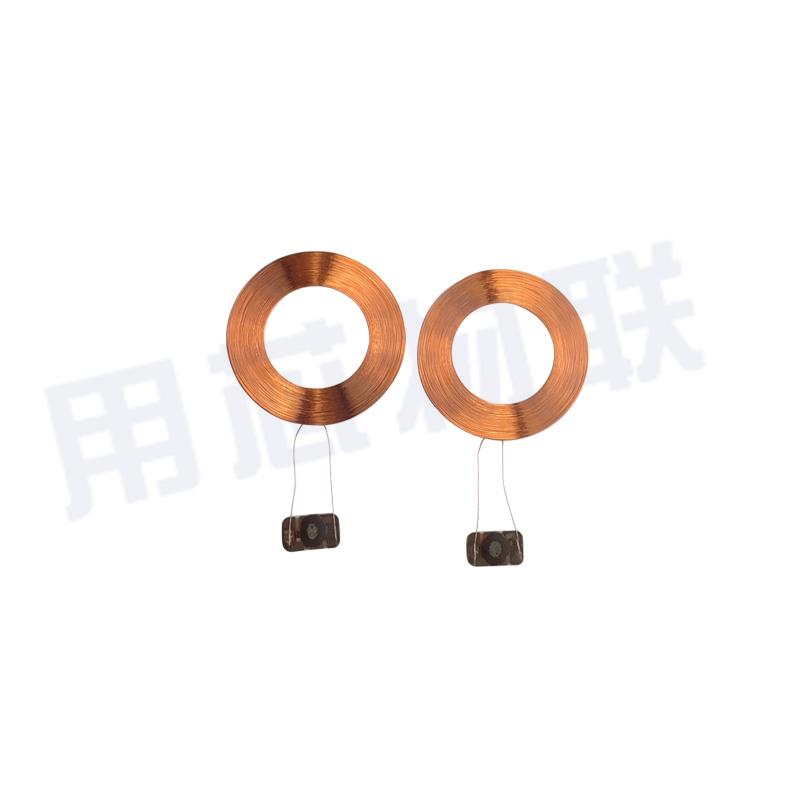

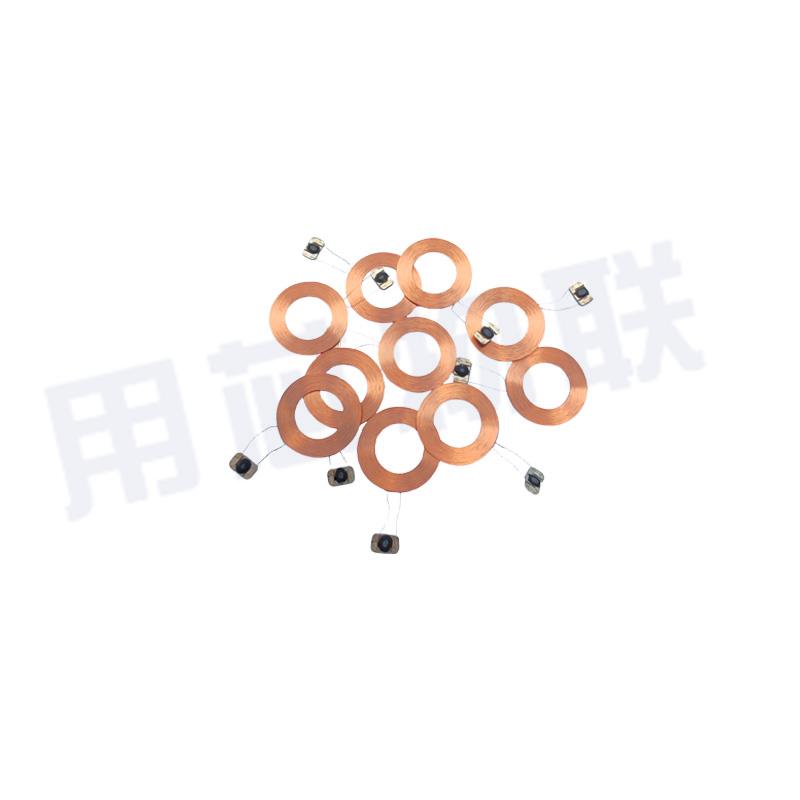

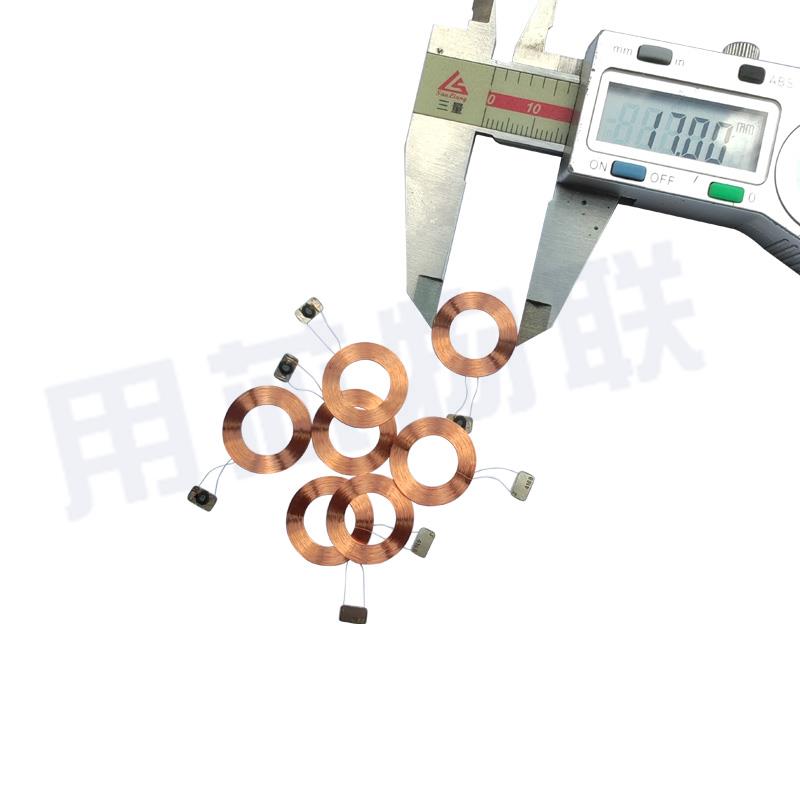

Low Frequency Coil Loose Soldering（Φ10*17+4168）
RFID coil soldering chip products are core modules that firmly combine precision-wound RF antenna coils with application-specific integrated circuit chips through high-reliability soldering processes. It is the "heart" and "senses" that make up a complete RFID tag (Inlay) or smart card, realizing a wireless bridge from the physical world to digital information.
产品描述
RFID coil loose soldering is a specialized manufacturing process that directly solders RFID chips onto fine copper coils. Different from traditional packaged RFID modules, loose soldering technology directly connects the pins of microchips with the coil endpoints through high-precision soldering equipment, forming RFID core components with more compact structure and more stable performance. This technology is particularly suitable for applications with special requirements for size, performance and reliability.
Parameter：
|
chip: |
Low-frequency chip (customizable) |
|
Materials: |
Enameled wire |
|
Operating frequency: |
Low Frequency 125Khz (Customizable) |
|
Read and Write Distance: |
0-1cm low frequency |
|
Reading and writing time: |
1-2M/S |
|
Operating Temperature: |
-20℃~ 180℃ |
|
Application: |
It can be used for asset management, anti-counterfeiting traceability, mobile phone accessories NFC patch, power inspection, asset management, access control management, elevator management, item identification, etc. |
|
Product Features: |
Sensitive induction, can be placed inside the shell, ultra- thin and small size, does not take up space |
Application:
1. High-end Industrial Asset Management:
Precision instrument tracking: unique identification of high-value assets such as scientific research equipment and measuring instruments
Tool Management: High-precision tool management in aerospace, automotive manufacturing, and more
Production process control: work-in-progress tracking in semiconductor manufacturing and precision machining
2. Special Environment Applications:
High temperature environmental label: can withstand continuous high
temperatures above 150°C, suitable for baking and heat treatment industries
Medical sterilization label: Resistant to gamma rays, ethylene oxide and other medical sterilization processes
Chemical environmental label: anti-corrosive chemical erosion, used for the management of chemical raw material barrels, pipelines, etc
3. Miniaturized Product Integration:
Micro medical equipment: tracking and management of micro medical tools such as endoscopes and surgical instruments
Precision electronics: integrated into mobile phone internal components, micro sensors, etc
Jewelry Luxury Management: Virtually invisible security and traceability labels
4. Demanding Applications:
Automotive & Transportation: Tire pressure sensors, engine component tracking (high temperature, vibration resistance)
Outdoor & Infrastructure: Bridge Monitoring Sensors, Underground Pipeline Identification (Moisture Resistance, Temperature Difference)
Military & Aviation: Ammunition Management, Aircraft Component Lifecycle Tracking (High Reliability Requirements)
